Posted: **Fri Jan 26, 2024 7:29 pm**

what is the solution available for the RAID on BFN System board?

Posted: **Sun Jan 28, 2024 5:24 pm**

Intel E3845 does not support hardware RAID directly, software RAID is possible and we have achieved it for one of our customer requirements. I am going to add some images for better understanding.

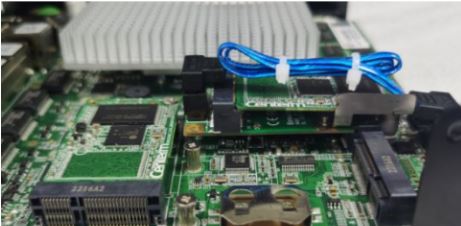

The solution lies in an extra component i.e. BF-RAID-S2M.

It uses two mSATA ports and a SATA connector.

: RAID-S2M-01.JPG (23.06 KiB) Viewed 2855 times

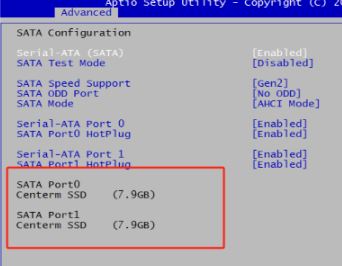

It shows two SSDs in the BIOS.

: RAID-S2M-02.JPG (16.57 KiB) Viewed 2855 times

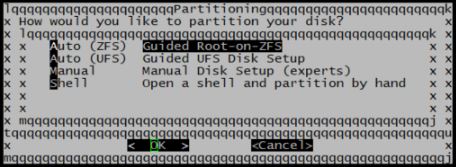

During the installation of pfSense, you will be able to see both SSDs and can use RAID 1

: RAID-S2M-03.JPG (24.82 KiB) Viewed 2855 times

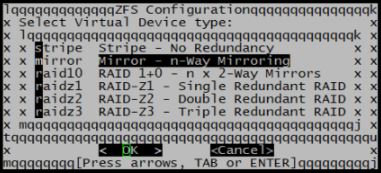

: RAID-S2M-04.JPG (25.18 KiB) Viewed 2855 times

: RAID-S2M-05.JPG (13.99 KiB) Viewed 2855 times

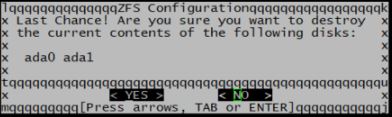

: RAID-S2M-06.JPG (14.29 KiB) Viewed 2855 times
