Interested to make a RAID

[AndrewP]

what is the solution available for the RAID on BFN System board?

[bfadmin]

Intel E3845 does not support hardware RAID directly, software RAID is possible and we have achieved it for one of our customer requirements. I am going to add some images for better understanding.

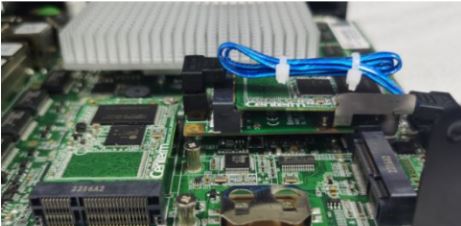

The solution lies in an extra component i.e. BF-RAID-S2M.

It uses two mSATA ports and a SATA connector.

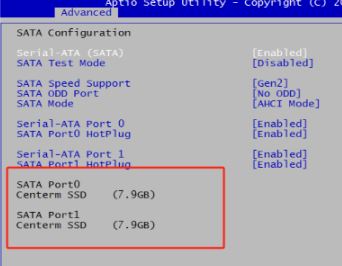

It shows two SSDs in the BIOS.

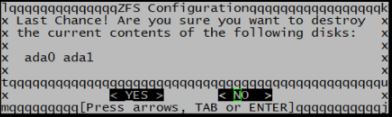

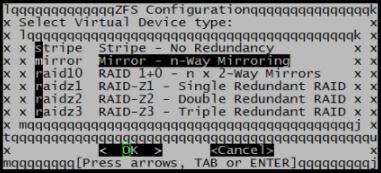

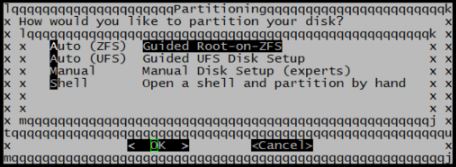

During the installation of pfSense, you will be able to see both SSDs and can use RAID 1
